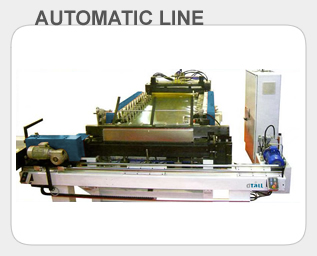

From a bobbin of width 1500mm and in a constant process makes the different operations for the manufacture of the conduit.

It begins the work in the zone of supply, preparation of the sheet, straightened, punzonado.
In the second stage conforms the bridle of union of every side in the dimension that decides, the last two stations are of "pressing" and can be excluded according to the type of conduit that is wanted to obtain. Before the folded one there is a station that fulfils the nervado of reinforcement. The sheet is positioned to realize the profile Pittsburgh.
In the zone of folded and cut that fulfils the nervado of reinforcement, which is expelled by automatic form by the profile Pittsburg.

The average of duration of the manufacturing process of a conduit is approximately of 60 seconds.
Can be make conduits of 1, 2, 3 and 4 faces.
Numerical powerful control with system of self-diagnosis.

TECHNICAL SPECIFICATION:

• Material cut: Steel, galvanised metals, aluminium, stainless steel, etc.
• Maximum stainless steel cutting thickness: 0.8mm
• Loads of maximum break: 400 N/mm2
• Elastic limit: 195 N/mm2
• Working width: 1500mm
• Maxim length: Sin limitaciones
• Steps of profile: 16
• Axis diameter of rollers: 40mm
• Lubrication of the transmission: Bath of oil
